01 — SPEED
Faster Layout Turnaround
Layout plans up to 10x faster than traditional chalk lines and tape measures.
// SERVICE — CALGARY, AB

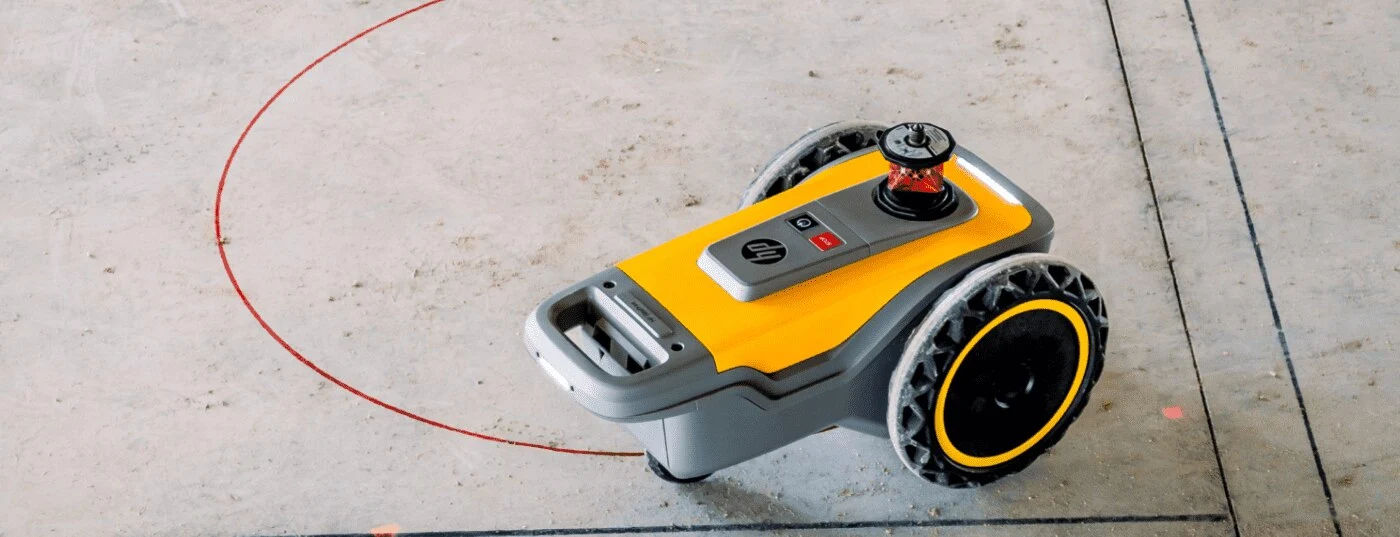

Robotic Site Layout
Proport Design helps speed up construction and eliminate manual errors with HP SitePrint — the future of layout is here.
Why Choose Robotic Site Layout?
Proport Design is the first in Alberta, and among fewer than five in Canada, to adopt this revolutionary layout technology for commercial construction layout. Leveraging state-of-the-art layout systems, our methods simplify complex layouts, reduce errors, and accelerate project timelines.
02 — ACCURACY
Pinpoint Accuracy
HP SitePrint delivers millimeter-level precision, minimizing rework.
03 — WORKFLOW
Streamlined Project Flow
Aligns perfectly with your BIM or CAD models to keep trades on track.
Robotic Site Layout Services
Proport Design provides full-service robotic site layout for commercial, industrial, and oil & gas projects across Alberta. Whether it's a new build or a retrofit, our team works with your design files to print accurate layout lines directly on-site using HP SitePrint.
Included Services:
- On-site setup and calibration
- DWG/DXF file preparation
- Layout line printing for walls, doors, electrical, plumbing, HVAC, and more
- Coordination with GC and trades
- Layout verification and reporting

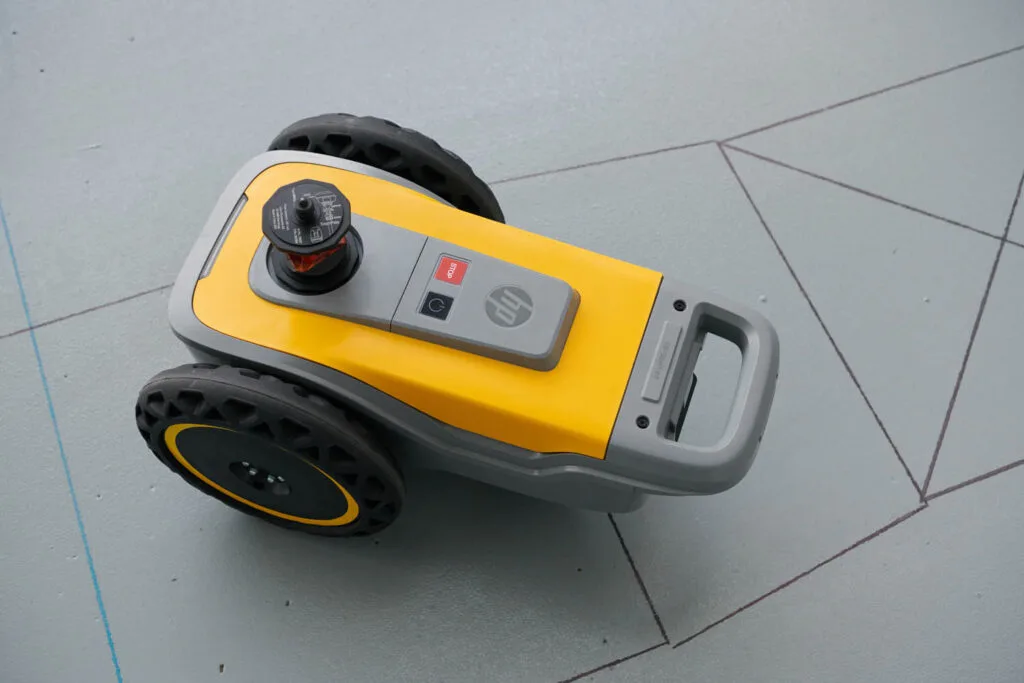

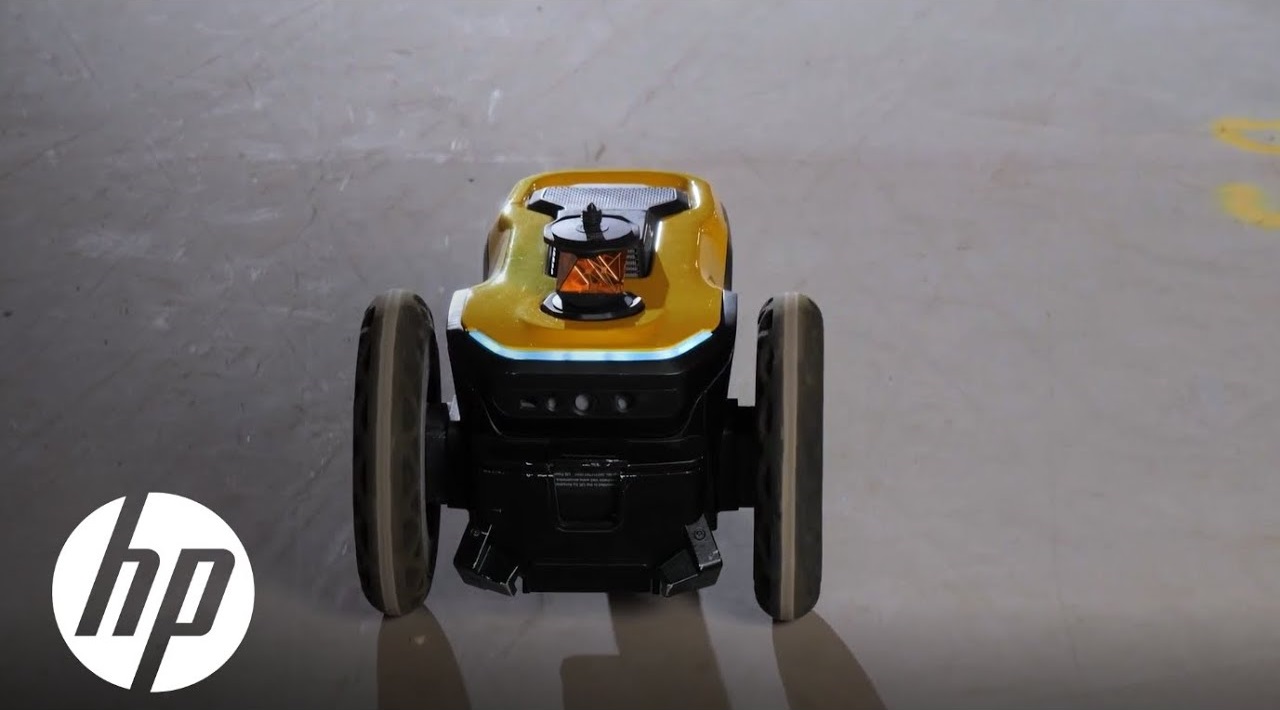

HP SitePrint In Action
New: Laser Layout on Floors, Walls & Ceilings
We've added the Mechasys XR Projector to our fleet — a robotic laser projector that displays your CAD or BIM drawings at full 1:1 scale directly on the surface you're building on, with millimeter accuracy. Where HP SitePrint prints your layout on the floor, the XR Projector takes it to every surface: walls, ceilings, and multiple elevations.
Perfect for:
- Partitions, framing and drywall layout
- Acoustical ceiling grids — projected overhead
- Electrical, plumbing and HVAC at any elevation
- Tenant improvements and office conversions
Available as a full-service layout with our operator, or as an equipment rental for your own crew — the first laser layout rental in Alberta.
Laser Layout Rental & RatesIndustries Served
At Proport Design, we deliver robotic site layout services across a wide range of industries. From commercial construction to oil and gas projects, our HP SitePrint technology ensures fast, accurate, and efficient layout printing to keep your projects on time and on budget.
SECTOR 01
Commercial Construction
Office towers, retail, mixed-use developments.
SECTOR 02
Oil & Gas Sites
Layouts for upstream and midstream facilities.
SECTOR 03
Industrial Facilities
Factories, plants, and warehouses.
SECTOR 04
Mills
Pulp, lumber, and processing mills.
Frequently Asked Questions About Robotic Site Layout
HP SitePrint is a revolutionary autonomous robotic layout system that prints construction layout lines directly onto concrete floors. It uses your CAD/BIM files to achieve millimeter-level accuracy, completing layouts up to 10x faster than traditional chalk line methods. Proport Design is the first company in Alberta to offer this cutting-edge technology.
HP SitePrint delivers millimeter-level precision, significantly more accurate than traditional tape measures and chalk lines. This precision virtually eliminates layout errors, reducing costly rework and keeping your project on schedule.
Robotic site layout is ideal for commercial high-rise buildings, office towers, retail developments, industrial facilities, warehouses, and oil & gas sites. Any project requiring precise layout for walls, electrical, plumbing, HVAC, or structural elements benefits from this technology.
We accept DWG and DXF file formats from all major CAD and BIM software including AutoCAD, Revit, and Plant 3D. Our team handles file preparation and optimization to ensure seamless integration with the HP SitePrint system.
Pricing depends on project size, complexity, and location. Despite the advanced technology, robotic layout often proves more cost-effective than traditional methods due to reduced labor hours and elimination of rework. Contact us for a free quote tailored to your specific project needs.
Robotic Site Layout Projects
See our HP SitePrint robotic layout technology in action on real construction sites
Yellowstone Building Project
Multi-story construction 3D scan with layout line integration
Robotic Construction Layout
HP SitePrint robotic layout grid for precise positioning
